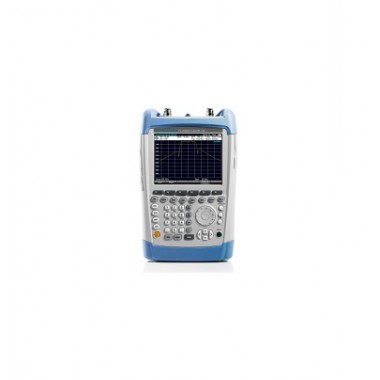

罗德与施瓦茨RS 电视信号分析仪 ETH

罗德与施瓦茨RS 电视信号分析仪 ETH

Portable digital TV signal analysis up to 3.6 GHz/8 GHz

• TV, spectrum and network analyzer in a single box

• Frequency range up to 3.6 GHz or 8 GHz

• High-precision demodulator (MER typ. 45 dB)

• Wide input level range (–76 dBm to +10 dBm) for quasi-error-free transport stream decoding

• Compact, lightweight, portable instrument that runs max. 4.5 hours on battery

•

  Features & Benefits

• Measurement of all DVB-T, DVB-H and ISDB-T signal parameters

• Display of constellation diagram, channel impulse response, OFDM spectrum with shoulder distance and MER(k)

• Wide input level range due to integrated preselection and preamplifier

• Full-featured spect

• Comprehensive TV, spectrum and network analysis functionality
