罗德与施瓦茨RS RMS 电压表URE3

罗德与施瓦茨RS RMS 电压表URE3

URE3 are broadband RMS voltmeter featuring extremely high accuracy and speed

Key Facts

• True RMS measurement for AC and AC+DC

• Peak-value measurement (pos., neg., peak-to-peak)

• Frequency measurement up to 30 MHz

• DC voltage measurement

• Unmatched measuring accuracy through automatic frequency response error correction

• More than 30 measurements/s

• Highpass and lowpass filters

• Digital and analog displays

• Relative measurements, maxima/minima

• Convenient menu operation

• IN/OUT option with dual-channel analog output, ready output, trigger input, TTL frequency counter input

• IEC/IEEE bus for all functions

• Brief Description

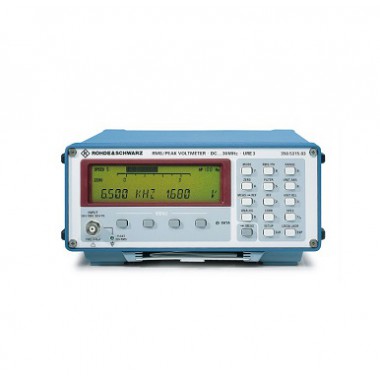

  The RMS/Peak voltmeter R&S®URE3 further enhances the range of applications due to its greater frequency range and higher accuracy, built-in frequency counter and additional peak-responding rectifier.
