Setting standards in RF performance and usability

Key Facts

• Frequency range from 2 Hz to 8/13.6/26.5/43.5/50/67/85 GHz (with external harmonic mixers fromRohde & Schwarz up to 500 GHz)

• Low phase noise of –137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)

• –88 dBc dynamic range (with noise cancellation) for WCDMA ACLR measurements

• Up to 2 GHz analysis bandwidth

• < 0.4 dB total measurement uncertainty up to 8 GHz

• Real-time analysis up to 512 MHz bandwidth

• High-resolution 12.1" (31 cm) touchscreen for convenient operation

• Multiple measurement applications can be run and displayed in parallel

• Brief Description

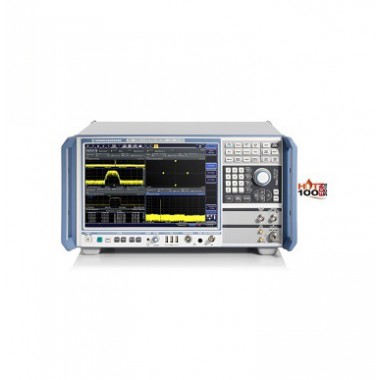

  The high-performance R&S®FSW signal and spectrum analyzer was developed to meet demanding customer requirements. Offering low phase noise, wide analysis bandwidth and straightforward and intuitive operation, the analyzer makes measurements fast and easy.
