德国GMC 电能质量分析仪 HDPQ®Xplorer

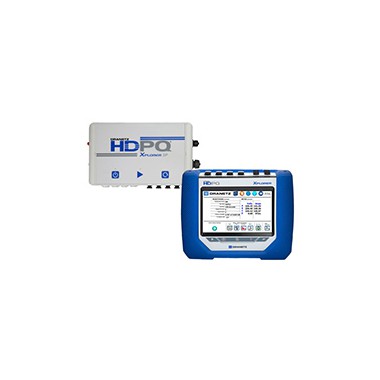

The Dranetz HDPQ Xplorer and Dranetz HDPQ Xplorer SP are the exact same instrument, but are in different enclosures. The Dranetz HDPQ Xplorer is a true hand-held portable instrument with a built in 7″, tablet-like touch LCD display. The Dranetz HDPQ Xplorer SP has the same measurement and communications capabilities, but is housed in an IP65 enclosure without an LCD display. The IP65 enclosure of the Dranetz HDPQ Xplorer SP greatly expands the applications of the Dranetz HDPQ Xplorer into outdoor and harsh environments, along with other applications where an LCD display is undesirable.
The Dranetz HDPQ Xplorer family of power quality instruments offers you the best in class monitoring capabilities available. It measures to all current industry standards, including IEC 61000-4-30 Class A, IEC 61000-4-7, IEEE 1159, IEEE 519, IEEE 1459, and more. With its high speed transient data capture (1 microsecond/channel) capabilities, this 8-channel workhorse simultaneously captures and characterizes thousands of parameters, by using a range of standard and customizable operating modes. The unique measurement capabilities include capture of low-medium-high frequency transients through peak, waveshape, rms duration and adaptive high-speed sampling, as well as power measurements to clearly characterize harmonics, non-sinusoidal, and unbalanced systems. The Intelligent AnswerModule® feature provides consultant-like analysis of sag directivity, capacitor switching transient identification/directivity and motor analysis/reporting.
