仿真电源EPX 系列
| ModelElectronic powerEPX 4104410VAEPX 4106620VAEPX 41121250VAOption : GPIB, Three Phase option |
 | |

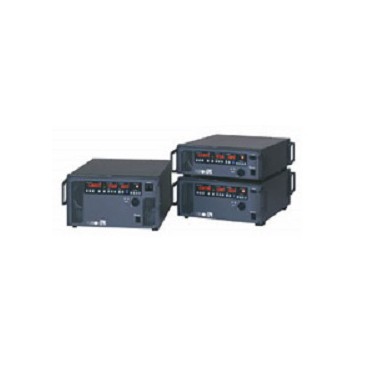

| The EPX series , EPX 4112, EPX 4106 and EPX 4104 are single-phase AC power supply consisting of a power amplifier, built-in 40Hz to 500Hz frequency synthesizer and digital display. | |
 | Powerful |
| Peak output current is as large as 2.5 times of RMS rated value.Electronic power is 3 types of 410VA, 620VA and 1250VA. | |
| Wide range of output voltage |
| The output voltage is 100,120,200 and 240Vrms selectable ,and each is variable 0 to 120%. And also secured rated output current within 20 to 120%. | |
| High precision/ high resolution |
| The output frequency is 40Hz to 500Hz,resolution 0.001Hz, and accuracy 50ppm. The output voltage harmonic distortion is less than 0.5%. | |
| Versatile functions |
| Preset memory, Auto-level, self-recovery potective circuit, and external signal input terminal. |
