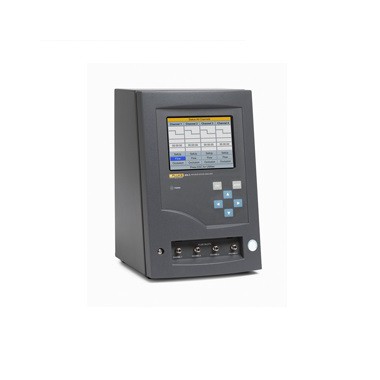

美国福禄克 FLUKE IDA-5 输液设备分析仪

Ensure infusion pumps are tested accurately and quickly with the IDA-5 Infusion Device Analyzer.

特点

Tests up to four infusion pumps at the same time
Customizable test templates for quick and standardized testing
On-board and PC-based automation to fully test to IEC60601-2-24 testing requirements
兼容几乎所有类型的输液设备
Real time snap shots of flow and pressure for immediate issue recognition
Instantaneous and average flow measurement of up to 1500 ml/hr
可测量高达 45 psi 的阻塞压
Single-flow, dual-flow (piggyback) and PCA testing
Auto-start mode enables unit to begin testing only when fluid is detected to maximize accuracy
Ability to automatically end flow measurement based on user-defined time, volume or both
Convenient and easy data entry with plug-n-play, USB compatible, keyboard or barcode scanner
Compatible with a wide variety of off-the-shelf printers
内置存储器可保存测试结果，供打印或下载至计算机
Optional Ansur automation software completely integrates medical device testing including electrical safety, visual inspection and other performance parameters for total digital data management
Tethers with other Ansur-automated test devices for harmonized workflow and reporting
支持网络遍布全球，可向世界各地的福禄克医疗测试客户提供快捷的服务，确保安枕无忧。
技术与指标

规格

流速测量
Method	测量一段时间内流过的容积，然后计算流量
量程	0.1 ml/h to 1500 ml/h (2600 m/h is shown)
精度	1 % of reading ±1 LSD for flows of 16 to 200 ml/h for volumes over 20 ml, otherwise 2 % of reading ±1 LSD for volumes over 10 ml under laboratory conditions.Degassed water at 15 °C to 30 °C (59 °F to 86 °F) is recommended for long tests.
长测试持续时间	100 个小时
容积测量
Method	由测量模块直接测得容积，小采样量为 60 微升
量程	0.06 ml 至 9999 ml
精度	流速在 16 ml/h 至 200 ml/h ，且容积大于 20 ml 时，为读数的 1 % ± 1 LSD。否则在实验室条件下大于 10 ml 时，为读数的 2 % ± 1 LSD。
长测试持续时间	100 个小时
PCA bolus/dual flow measurement
Method	See volume measurement above
Min bolus volume	0.5 ml
分辨率	60 µl increments
Max test durations	100 个小时
压力测量
Method (back pressure and flow test)	See volume measurement above
量程	0 psi 到 45 psi 或等同于 mmHg 和 kPa
精度	在实验室条件下满量程的 1 % ±1 LSD
长测试持续时间	1 hour
Other specification
模板	Predetermined test sequences.Typical capacity 200.
结果存储	Test results stored for later viewing, printing or transfer to PC. Typical capacity 250 tests.
一般规格
Operating voltage range	100 V 交流至 240 V 交流
Supply frequency	50/60 Hz
Supply power	<50 VA（伏安）
Fuses	20 mm T1.6 A H 250 V x 2
大小（高 x 宽 x 深）	30 cm x 20 cm x 20 cm (12 in x 8 in x 8 in)
重量	5 kg approx. (11 lbs)
海拔高度	0 m 至 3000 m (0 ft 至 10000 ft)
温度
操作	15 °C 至 30 °C（59 °F 至 86 °F）
存储	所有液体排出时，-20 °C 至 +40 °C (-4 °F 至 +104 °F)
湿度	10 % 至 90 %，无冷凝

型号及配件

型号名称	描述
IDA-5/4 US120V	Four-channel Infusion Device Analyzer, US 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 UK250V	Four-channel Infusion Device Analyzer, UK 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 SWZ250V	Four-channel Infusion Device Analyzer, Switzerland 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 SHK250V	Four-channel Infusion Device Analyzer, Shuko 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 ITAL250V	Four-channel Infusion Device Analyzer, Italy 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 ISR250V	Four-channel Infusion Device Analyzer, Israel 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 IND250V	Four-channel Infusion Device Analyzer, India 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 DEN250V	Four-channel Infusion Device Analyzer, Denmark 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 BRAZ230V	Four-channel Infusion Device Analyzer, Brazil 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 AUS250V	Four-channel Infusion Device Analyzer, Australia 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 ITAL250V	Two-channel Infusion Device Analyzer, Italy 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 US120V	Two-channel Infusion Device Analyzer, US 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 UK250V	Two-channel Infusion Device Analyzer, UK 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 SWZ250V	Two-channel Infusion Device Analyzer, Switzerland 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 SHK250V	Two-channel Infusion Device Analyzer, Shuko 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 ISR250V	Two-channel Infusion Device Analyzer, Israel 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 IND250V	Two-channel Infusion Device Analyzer, India 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 DEN250V	Two-channel Infusion Device Analyzer, Denmark 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 BRAZ230V	Two-channel Infusion Device Analyzer, Brazil 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 AUS250V	Two-channel Infusion Device Analyzer, Australia 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 US120V	One-channel Infusion Device Analyzer, US 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 UK250V	One-channel Infusion Device Analyzer, UK 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 SWZ250V	One-channel Infusion Device Analyzer, Switzerland 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 SHK250V	One-channel Infusion Device Analyzer, Shuko 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 ITAL250V	One-channel Infusion Device Analyzer, Italy 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 ISR250V	One-channel Infusion Device Analyzer, Israel 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 IND250V	One-channel Infusion Device Analyzer, India 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 DEN250V	One-channel Infusion Device Analyzer, Denmark 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 BRAZ230V	One-channel Infusion Device Analyzer, Brazil 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 AUS250V	One-channel Infusion Device Analyzer, Australia 所包含的附件： Hydrograph software 用户手册 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M

其他备件
48457FG	48457FG Luerlock 3-way t-valve (part# 2391750) for IDA4 Plus
49964FG	49964FG Priming Syringe (part# 2391792) (for use with IDA 4 PLUS)
76044	76044 Drain Tube (part# 2238909) Connect to rear outlet drain of IDA4 Plus
MICRO-90	MICRO-90 bottle 225ml (part# 4541948)

软件
ANSUR IDA-5	Ansur IDA-5 Plug-In software (part# 4354503)
